Pulse
Storage with doors and drawersA functional and adaptable storage family with clean lines. Pulse is a functional storage family with clean lines, sharp edges and a large variety of materials and finishes. It is flexible and functional, modular, adaptable and it can be configured either by our own dedicated workstation or in clustered units in the open landscape.Modular construction. Open shelving, different combinations of storage with drawers and doors.
Model
Storage with doors and drawers
Details
Storage units can be ordered with metal legs in two heights, plinths or castors. Lock with key is standard, also available with code lock or RFID lock. Different options are available for handles and knobs.
Construction
22 mm wood-fibre board frame, sides, fronts and bottom are 16 mm board, back is 8 mm board. Surface coating is either veneer or MFC, thickness 0.2-2 mm depending on material choice. Options for legs/plinth: Plastic or MFC/wood board plinth. Leg frame of 12x12 mm steel, alternatively steel frame with castors Ø60 mm. Options for locks: steel key lock, alternatively steel/plastic code lock, or RFID-lock. Options for handles: steel bracket handle, knob or recessed handle.
Guarantee
5 years
Tested
EN 16121 - EN 16122

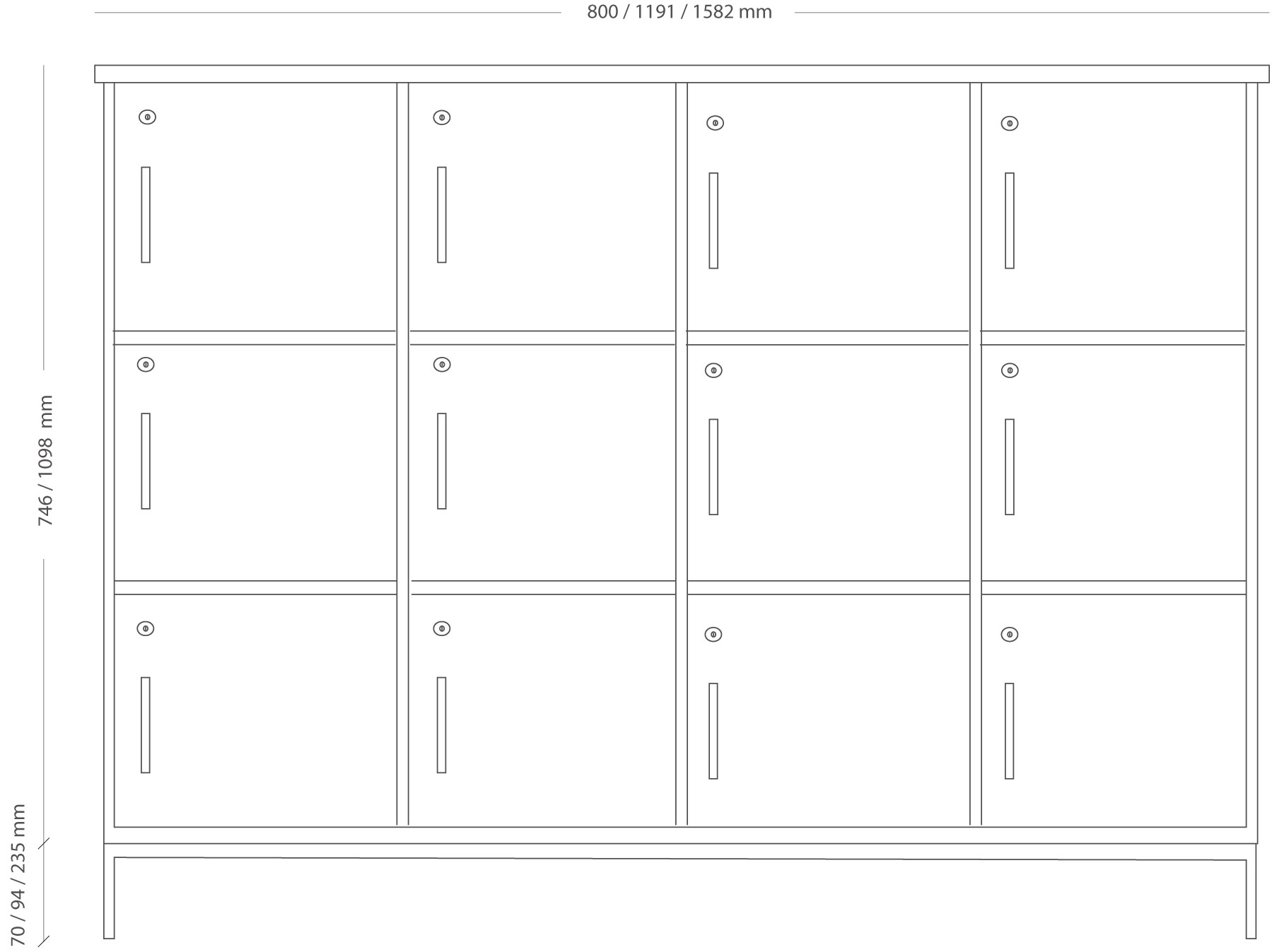

Storage
| Height | 746/1098 mm |
| Width | 800/1191/1582 mm |
| Depth | 400 mm |
| Weight | 30 - 90 kg |

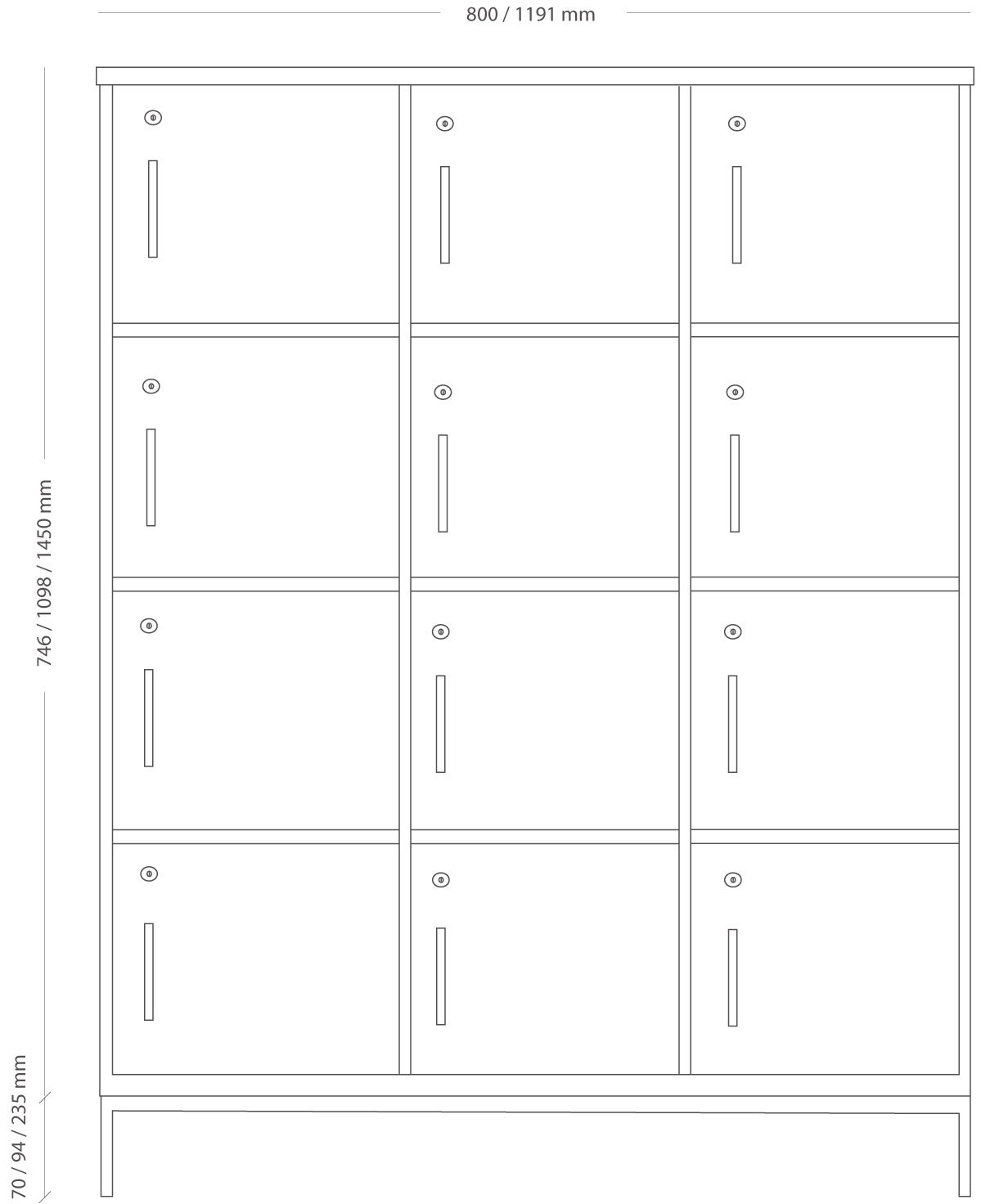

Storage
| Height | 746/1098/1450 mm |
| Width | 800/1191 mm |
| Depth | 400 mm |
| Weight | 30 - 90 kg |

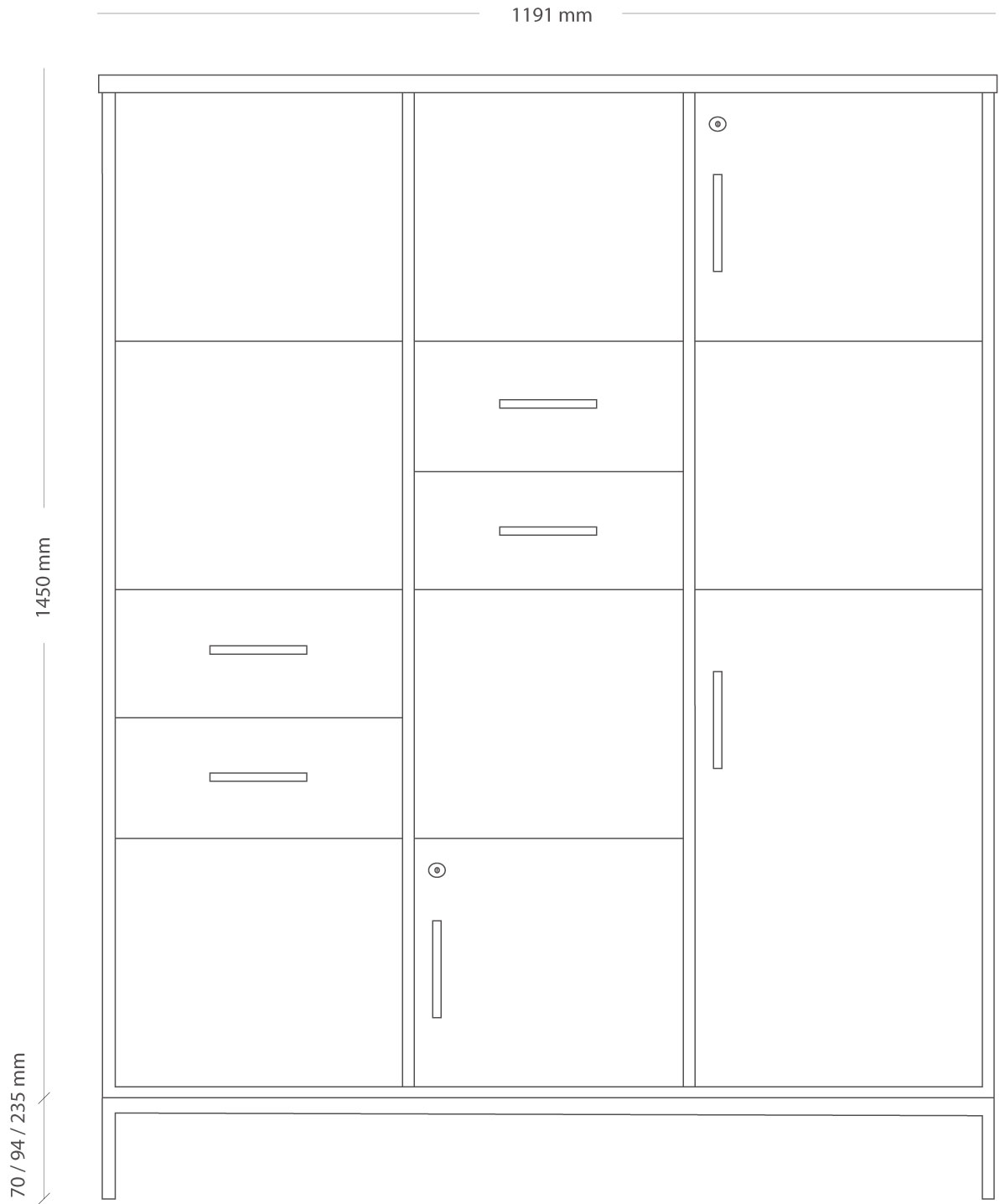

Storage
| Height | 746/1098/1450 mm |
| Width | 800/1191 mm |
| Depth | 400 mm |
| Weight | 30 - 90 kg |
Variant
Doors and drawers
-
Open shelves
Open shelves. -
Doors
Cupboards with doors. -
Drawers
Storage with drawers.
Frame
-
Leg frame 94 mm
Leg frame, height 94 mm. -
Leg frame 235 mm
Leg frame, height 235 mm. -
Castors Ø60 mm
Castors Ø60 mm, total height 94 mm. -
Plinth 70 mm
Plinth, height 70 mm.
Materials
Frame
-
Wood
-
-
MFC
-
Front
-
MFC
-
-
Lacquer
-
-
Wood
-
Legs
-
Lacquer
-
Handles and knobs
-
Lacquer
-
-
Metal
-
-
Wood
-
Base
-
MFC
-
-
PC/ABS Plastic
-
Frame with castors
-
Lacquer
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Bracket handle
Bracket handle 150 mm. -
Code lock
Lock with code. -
Filing accessories
Filing, form holders etc. -
Key lock
Lock with key. -
Knob
Knob for drawer or door. -
Other colours on leg frame
Other colours available on request. -
RFID-lock
Lock with RFID-function.
| Assembly instructions | ||
|---|---|---|
| Pulse - assembly instruction for add-on module | Share file Download file | |
| Pulse - adjustment of sliding doors | Share file Download file | |
| Pulse - adjustment of doors | Share file Download file | |
| Pulse - adjustment of drawers, instruction | Share file Download file | |
| Pulse - assembly of drawer set | Share file Download file | |
| Pulse - adjustments of cupboards, general instructions | Share file Download file | |
| Pulse - high leg frame assembly | Share file Download file | |
| Pulse - mounting of wall-hung modules | Share file Download file | |
| User manual | ||
|---|---|---|
| Manual - code lock 57 | Share file Download file | |
| Brochures and Catalogues | ||
|---|---|---|
| Pulse - broschure | Share file Download file | |
| Product Overview | ||
|---|---|---|
| Pulse - assortment overview | Share file Download file | |
| Certificates and licenses | ||
|---|---|---|
| Pulse - Environmental declaration | Share file Download file | |
| Pulse - Möbelfakta certificate (EN) | Share file Download file | |
| Models | ||
|---|---|---|
| Pulse AutoCad 2D dwg | zip | Share file Download file |
| Pulse AutoCad 3D dwg | zip | Share file Download file |
| Pulse 3D Studio 3ds | zip | Share file Download file |
| Product sheet | ||
|---|---|---|
| Pulse - storage with doors and drawers, product sheet | Share file Download file | |
