Mingle
BenchMingle is a modular sofa system designed to allow for flexible and comfortable seating solutions on a small surface. With straight or curved modules for seats and tables, as well as fixed combinations, Mingle offers many possibilities for modern and scalable lounge- and seating areas or meeting places.Mingle bench is available with one, two or three seats and can be a free-standing piece or can be included as part of a Mingle combination. A flexible table is available as option for two- and three-seater,
Model
Bench
Details
Exception from Möbelfakta: Sledge in chrome is not included in the Möbelfakta certificate. Upholstery in one or two different colors of fabric or leather.
Construction
Wooden frame made of board and solid wood. Upholstered cold-foam padding. Sledge leg base, made of Ø12 mm steel tube. Ø30 mm straight metal legs, made of powder-coated steel tube. Solid wooden legs Ø45 mm.
Guarantee
5 years
Tested
EN 16139, EN 1728

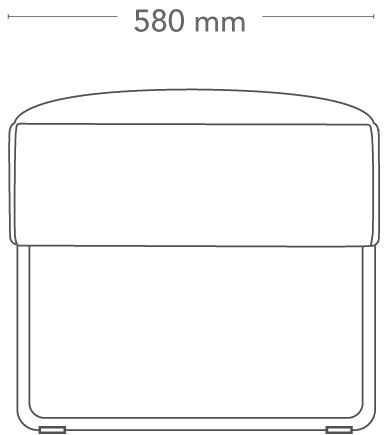

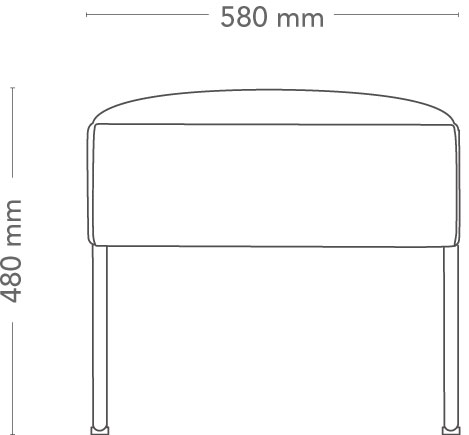

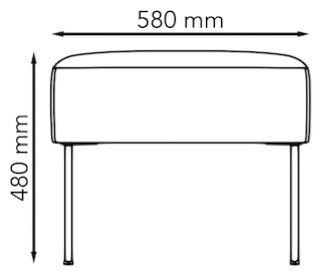

Bench, 1- seater
| Width | 580 mm |
| Depth | 580 mm |
| Seat height (with load) | 420 mm |
| Seat height | 480 mm |
| Weight | 11.0 kg |

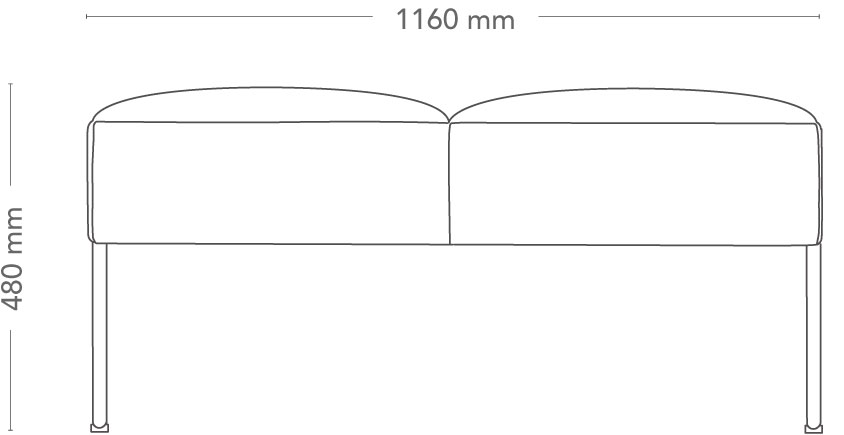

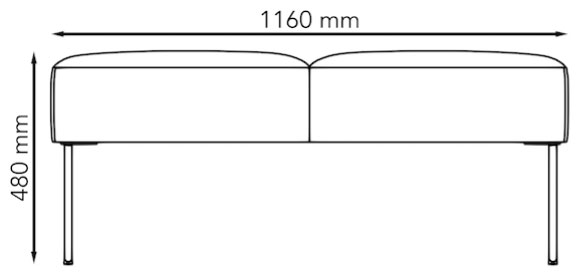

Bench 2-seater
| Width | 1160 mm |
| Depth | 580 mm |
| Seat height (with load) | 420 mm |
| Seat height | 480 mm |
| Weight | 18.0 kg |

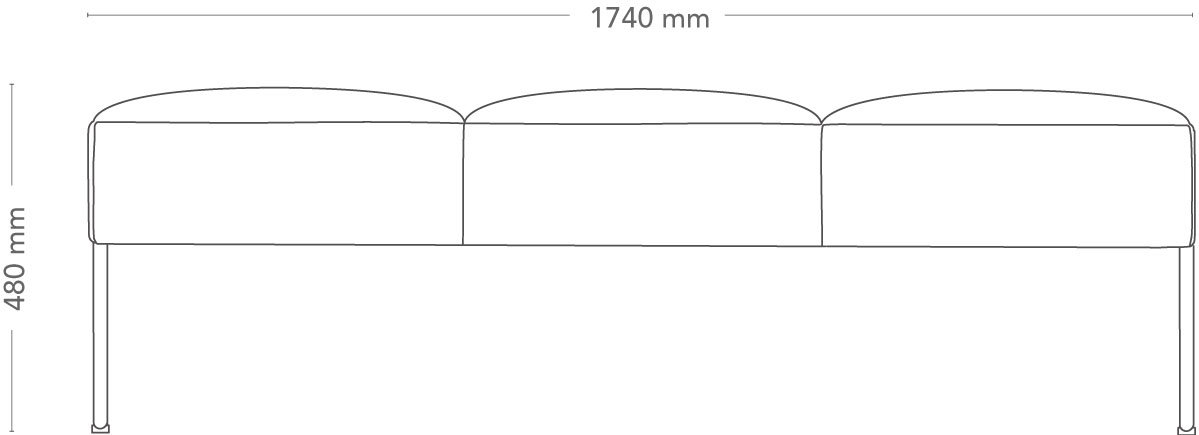

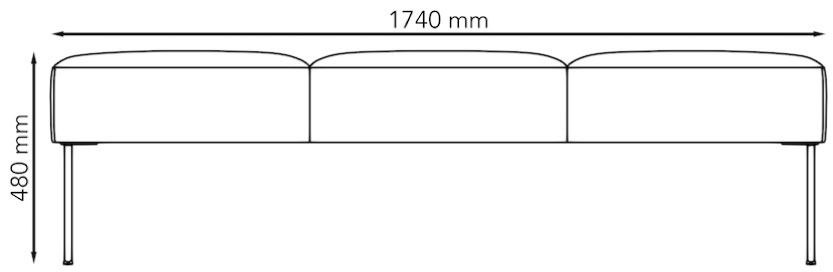

Bench 3-seater
| Width | 1740 mm |
| Depth | 580 mm |
| Seat height (with load) | 420 mm |
| Seat height | 480 mm |
| Weight | 27.0 kg |
Variant
Legs
-
Sledge
Metal sledge base. -
Wooden legs
Straight, round wooden legs. -
Metal legs
Round, straight, metal legs.
Materials
Seat
-
Fabric
-
Legs
-
Wood
-
Sledge
-
Lacquer
-
-
Metal
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Power and cable management
Accessories for power, IT and cable management.
| Brochures and Catalogues | ||
|---|---|---|
| Mingle brochure | Share file Download file | |
| Assembly instructions | ||
|---|---|---|
| Mingle assembly instructions | Share file Download file | |
| Product Overview | ||
|---|---|---|
| Mingle assortment overview | Share file Download file | |
| Certificates and licenses | ||
|---|---|---|
| EFG Mingle Möbelfakta Certificate | Share file Download file | |
| Mingle Environmental declaration (EN) | Share file Download file | |
| Möbelfakta EFG Mingle (EN) | Share file Download file | |
| Product sheet | ||
|---|---|---|
| Mingle bench, product sheet | Share file Download file | |
| Mingle bench | Share file Download file | |
| Models | ||
|---|---|---|
| Mingle models .3ds | zip | Share file Download file |
