Collaborate
Table with metal legsExclusive meeting and project table for collaboration, communication and knowledge sharing.
- EFG Collaborate has table tops with a core of 22 mm chipboard with straight edge or MDF core with bevelled edge. The tops are veneered with 0,6 mm in beech (R5), birch (B5) or ash white 2% (A2). 0,7 mm white high pressure laminate HPL (HV). Linoleum (D4) or MFC (MA, MB, MR, ME, MV, M6). Veneered tops have edge band in wood.
- The tables are available with or without cable lids. In addition, the tops can be fitted with inserted electrical sockets.
- Table tops width 1400 mm has transverse veneer direction.
- Frame consists of metal frame and legs (88x55 mm) in veneer ash white 2% (A2), lacquered anthracite(TA) or in metal (60x30 mm).

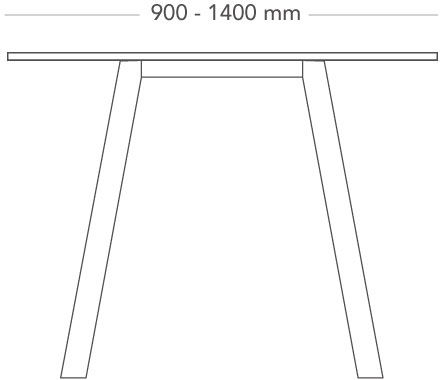

- A or U shaped frame.

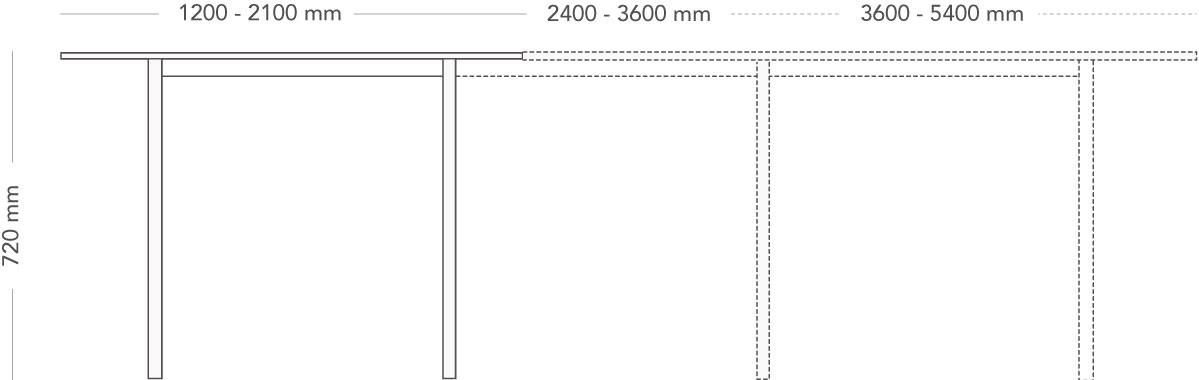

- Table heights: 720 mm and 1030 mm.
- Guarantee: 5 years liability for defects resulting from faulty design, materials or workmanship.
- Certified by “Möbelfakta” for quality, environmental and social responsibility.
- Tested according to: EN 15372 level 2, EN 1730.
- Optional Cable management, Measurements, Colours and Surface materials for table tops are available on request.
-
Wood
-
-
Lacquer
-
-
MFC
-
-
HPL
-
-
Linoleum
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
-
Cable hatch
Integrated cable hatch. To be equipped with power-and IT-accessories. The hatch can be ordered to match the table top, or in different colours and wood finishes. -
Power and cable management
Accessories for power, IT and cable management.
| Brochures and Catalogues | ||
|---|---|---|
| Table top assortment | Share file Download file | |
| Collaborate broschure | Share file Download file | |
| Assembly instructions | ||
|---|---|---|
| Collaborate U-legs assembly | Share file Download file | |
| Collaborate assembly | Share file Download file | |
| Product Overview | ||
|---|---|---|
| Collaborate assortment | Share file Download file | |
| Electrical outlets assortment | Share file Download file | |
| Symbols (for AutoCad) | ||
|---|---|---|
| Collaborate A-legs height 720 3d 2d | zip | Share file Download file |
| Collaborate U-legs 3d 2d | zip | Share file Download file |
| Collaborate A-legs other heights 3d 2d | zip | Share file Download file |
| Product sheet | ||
|---|---|---|
| Collaborate info (FI) | zip | Share file Download file |
| Collaborate info (DK) | zip | Share file Download file |
| Collaborate info (NO) | zip | Share file Download file |
| Collaborate info (EN) | zip | Share file Download file |
| Certificates and licenses | ||
|---|---|---|
| Collaborate connected tables wooden leg Mobelfakta | Share file Download file | |
| Collaborate free standing wooden leg Mobelfakta | Share file Download file | |
