Bow

Chair with metal legs

Bow – a versatile meeting chair combining Scandinavian style with comfort and sustainability. Bow has a completely separable design and is constructed with spring steel that provides a pleasant flexibility in the back and contributes to active sitting, which also makes it more comfortable to sit in for longer periods of time.Bow is available with fully upholstered back or wooden back, as well as with or without armrests. Both variants are stackable and connectable. The armchair can be hung on the edge of a table.

Jonas Forsman
Jonas Forsman
Möbelfakta certified logo
Möbelfakta certified
  • Details

  • Dimensions

  • Materials & Accessories

  • Downloads

Model

Chair with metal legs

Details

Bow has spring steel between seat and back for flexibility and comfort. The chair can be fully disassembled which allows for renovation and recycling. The fabric is not glued on, which allows it to be separated during recycling. The fact that the chair can be fully dissassembled also means that it is possible to convert a chair into an armchair, or vice versa. The armrest plates are made of wood-fibre, which is a mixture of wood and PP plastic, to reduce the consumption of non-renewable resources. Bow is stackable with a maximimum of 8 fully upholstered or 10 wooden-back chairs. A maximum of 8 Bows can be stacked on the EFG chair trolley. Bow can be connected, using a connection fitting (sold as an accessory). Bow with armrests can be hung up on a table to facilitate cleaning.

Construction

Seat and back are joined together with spring-steel parts. The legs and lower part of the frame are made from Ø19 mm steel pipe, while the frame above the seat is made from Ø16 mm steel pipe. The seating plate has a core of laminated wood, covered with foam and upholstered. The backrest plate is either in unupholstered, laminated wood or has a core in laminated wood which is then covered with foam and upholstered. Wood-fibre armrest plates, consisting of 40% wood, 60% PP plastic.

Guarantee

5 years

Tested

EN 16139:2013 Furniture - Strength, durability and safety - Requirements for non-domestic seating. Test level 1

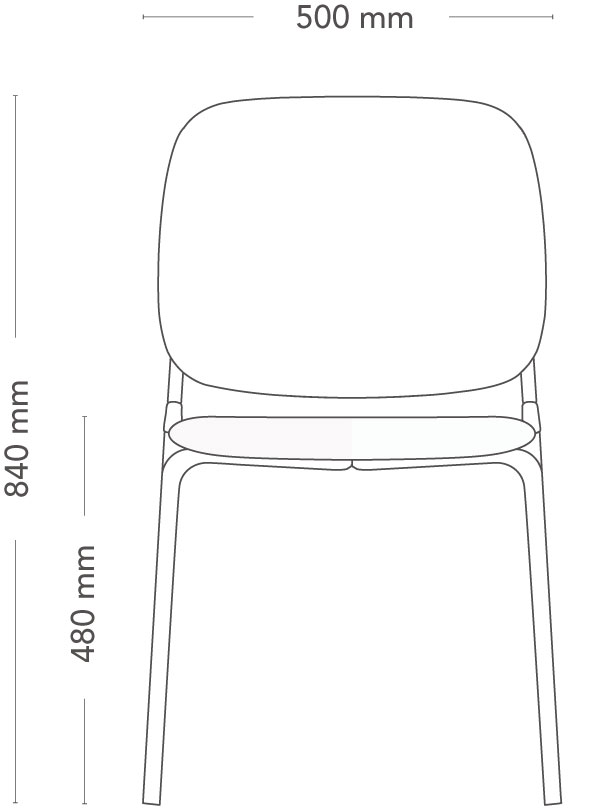

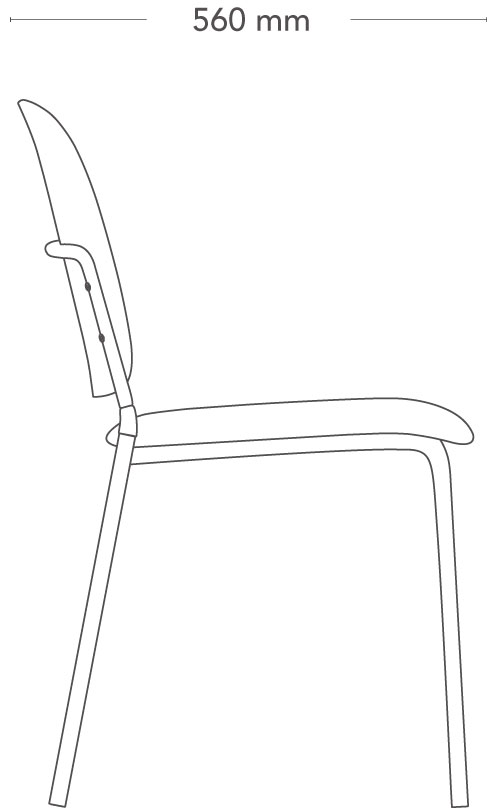

Height 840 mm
Width 500 mm
Depth 560 mm
Seat height (with load) 440 mm
Seat height 480 mm
Weight 6.0 kg
Dimension image Dimension image

Height 840 mm
Width 500 mm
Depth 560 mm
Seat height (with load) 440 mm
Seat height 480 mm
Weight 6.0 kg
Dimension image Dimension image

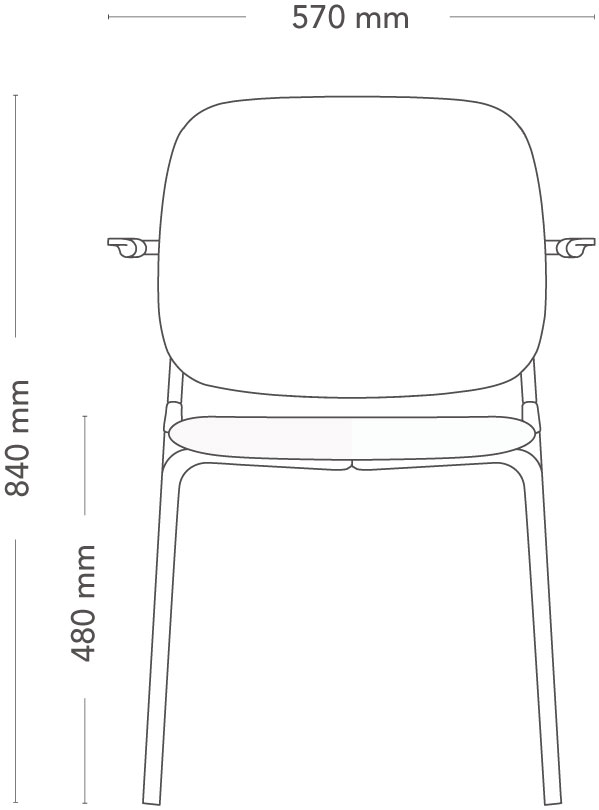

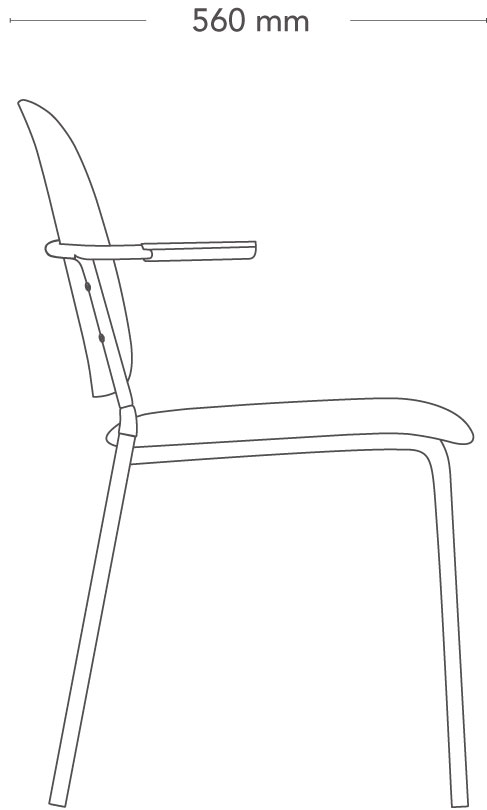

Height 830 mm
Width 570 mm
Depth 560 mm
Seat height (with load) 440 mm
Seat height 480 mm
Weight 6.4 kg
Dimension image Dimension image

Height 840 mm
Width 570 mm
Depth 560 mm
Seat height (with load) 440 mm
Seat height 480 mm
Weight 6.4 kg
Dimension image Dimension image

Variant

Armrests

  • Without armrests

    Without armrests

    Chair without armrests.
  • With armrests

    With armrests

    Chair with armrests.

Backrest

  • Wooden backrest

    Wooden backrest

    Wooden backrest, no upholstery.
  • Upholstered backrest

    Upholstered backrest

    Fully upholstered backrest.

Materials

Seat and back

  • Fabric

    • Xtreme 1222
    • Xtreme 1220
    • Xtreme 1232
    • Remix 1450
    • Remix 1459
    • Remix 1462
    • Main Line Flax 1180
    • Main Line Flax 1181
    • Morph
    • Morph
    • Blazer
    • Blazer
    • Blazer
    • Amdal
    • Amdal
    • Amdal
  • Leather

    • Elmosoft 1503
    • Elmosoft 1501

Back

  • Wood

    • Ash 2% white (light ash)
    • Natural oak
    • Black stained ash

Legs and armrests

  • Metal

    • White
    • Black
Name:
Code:
Colour code:
Price group:
RAL-colour:
NCS-colour:
Supplier colour code:
Composition:

Accessories

  • Feet for hard flooring

    Feet for hard flooring

    Felt feet
  • Connection fitting

    Connection fitting

    Fittings for connecting two or more units.
  • Trolley

    Trolley

    Transport trolley for stacked chairs.
Models
Bow 2dwg zip Download file
Bow 3ds zip Download file
Bow fbx zip Download file
Certificates and licenses
EPD - Environmental Product Declaration pdf Download file
Bow chair Möbelfakta certificate pdf Download file
Product sheet
Bow chair pdf Download file
Download all documents
Jonas Forsman logo

Designer

Designed by Jonas Forsman

Jonas Forsman has studied technical design at Chalmers in Gothenburg. Awarded Red dot on numerous occasions and also Design S for his products.
