Hold

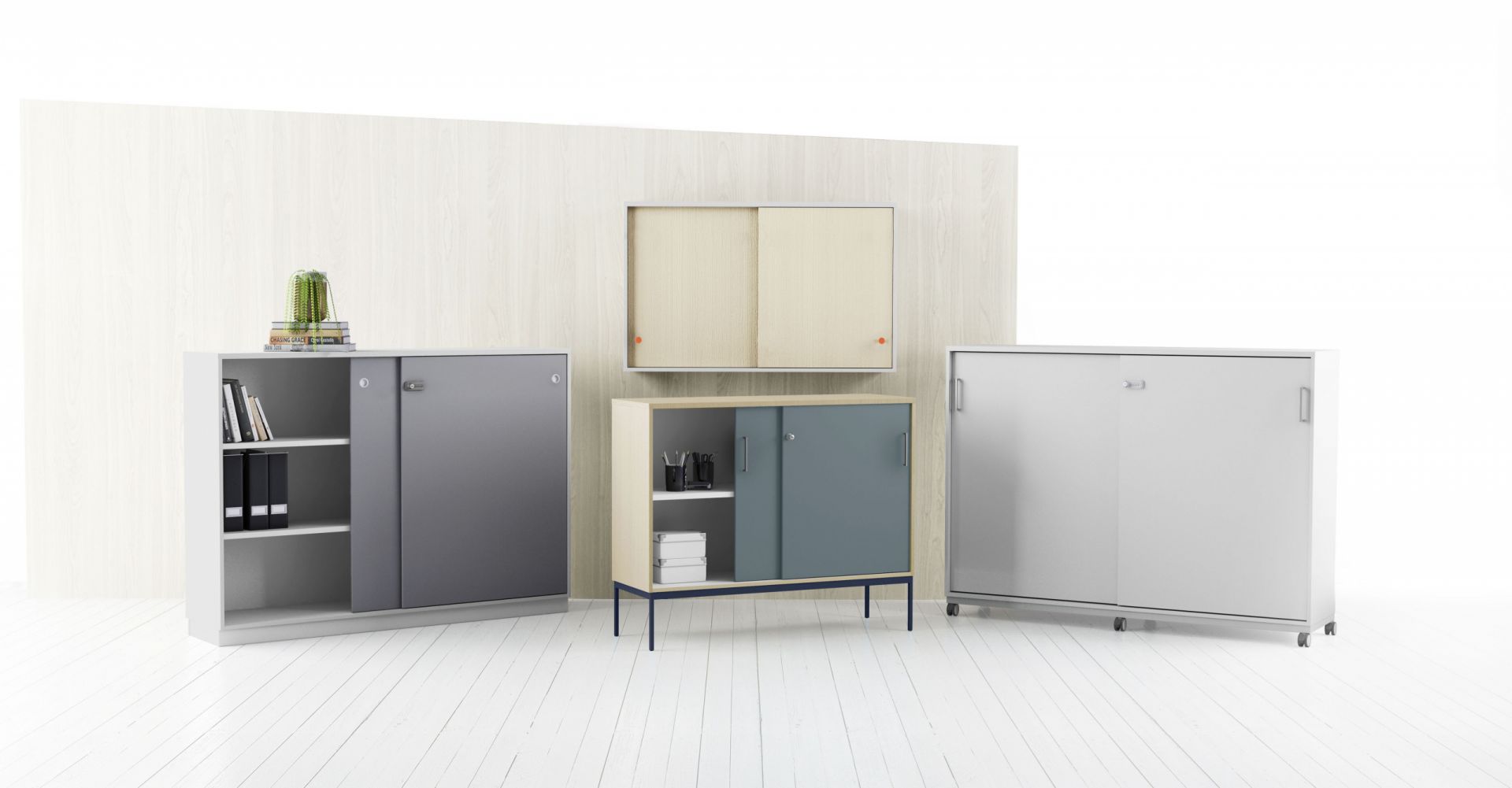

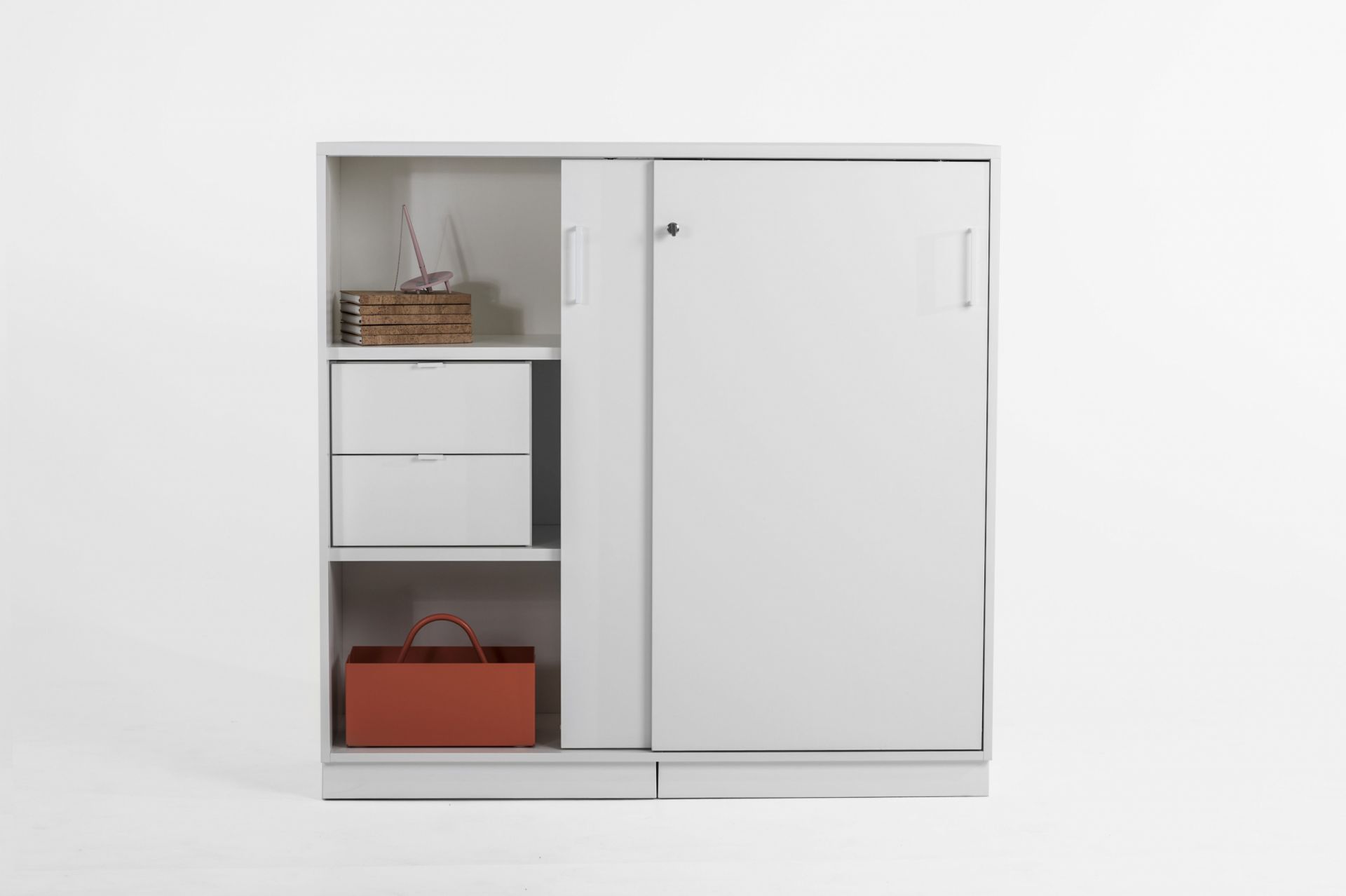

Sliding-door cabinetFunctional and flexible storage family. Hold is a truly functional storage family with clean lines, sharp edges and a large variety of materials and finishes. The series includes Tower as well as lockers with sliding doors.Cabinets with side sliding doors, placed on the floor or hung on the wall. Can be ordered with metal legs in two heights, plinth or wheels. Lock with key is standard, also available with code lock or RFID lock. Different options are available for handles and knobs.
Model
Sliding-door cabinet
Construction
Frame with top of 22 mm fiberboard, sides, fronts and bottom of 16 mm fiberboard, back of 8 mm fiberboard. Surface coating of veneer or laminate thickness 0.2-2 mm depending on material choice. Knob or stirrup handle made of steel and lock made of steel alt. a combination of plastic and steel depending on the variant. Plastic plinth, alt. in laminate with a frame of 16 mm wood fibreboard. Leg support of 12x12 mm steel tube, alt. steel wheel frame with wheel diameter 60 mm
Guarantee
5 years
Tested
EN 16121-EN 16122

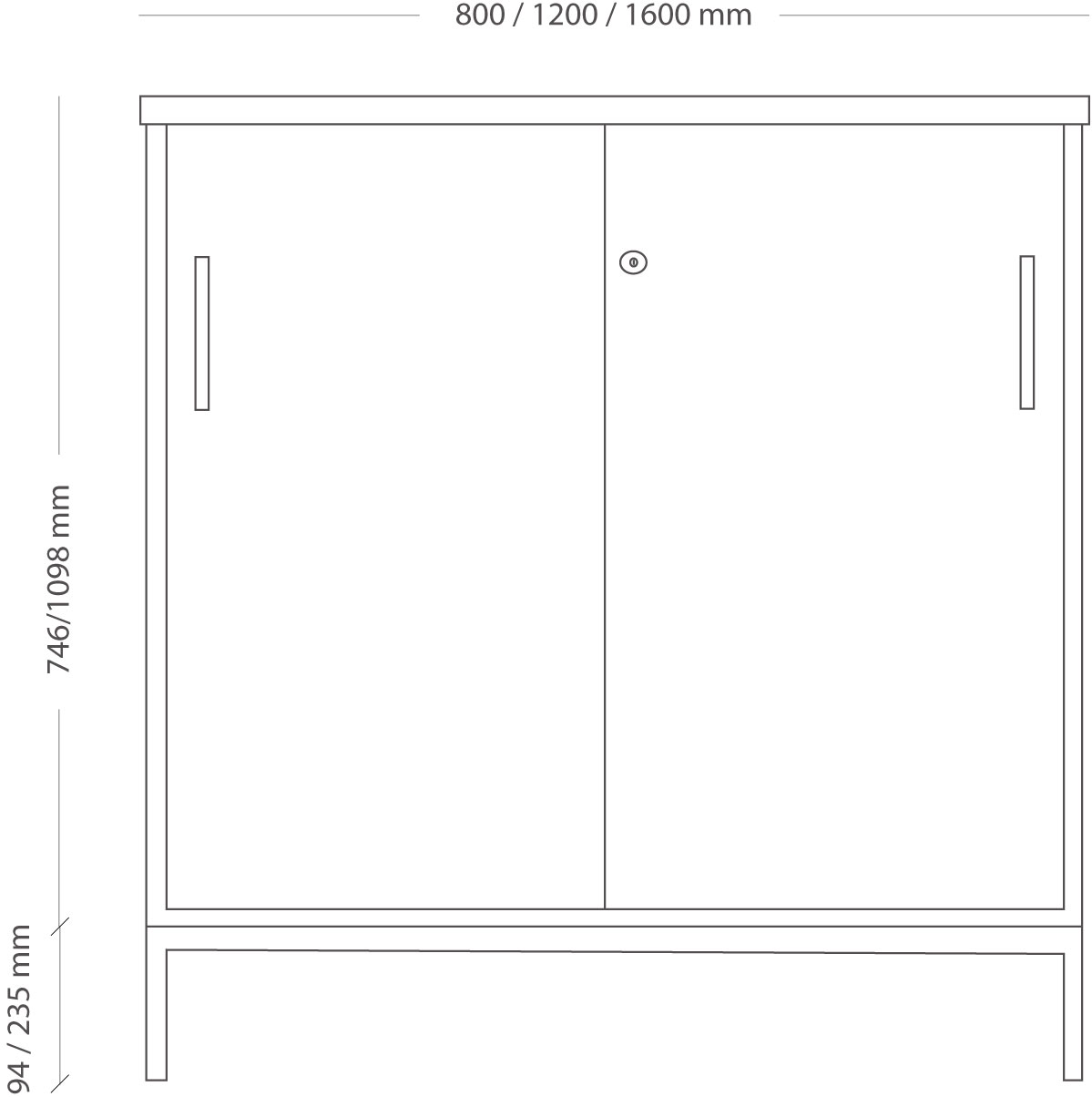

Storage
| Height | 816 - 1168 mm |
| Width | 800 - 1600 mm |

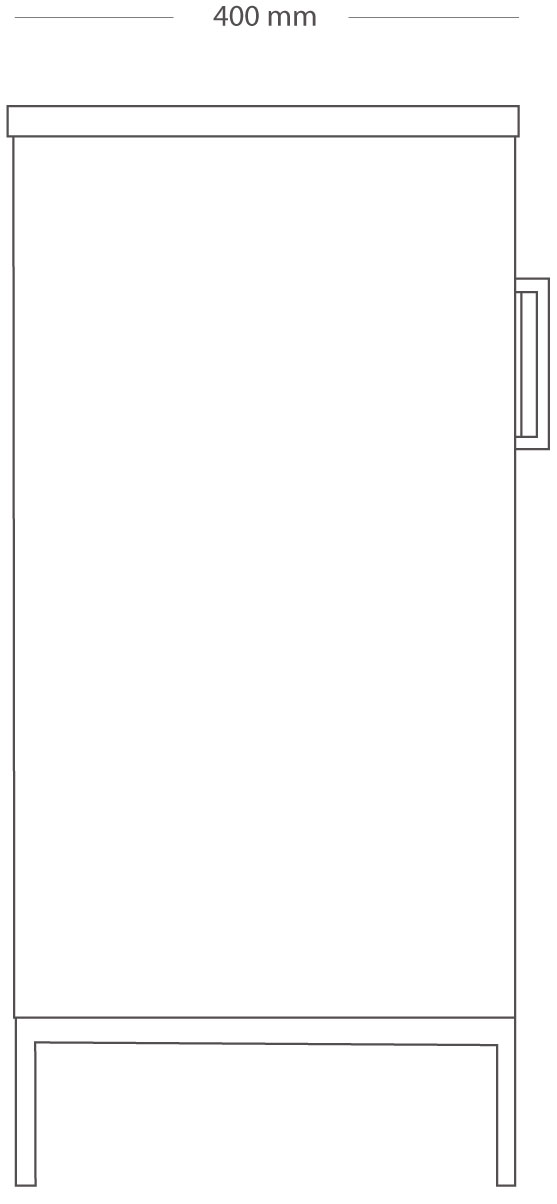

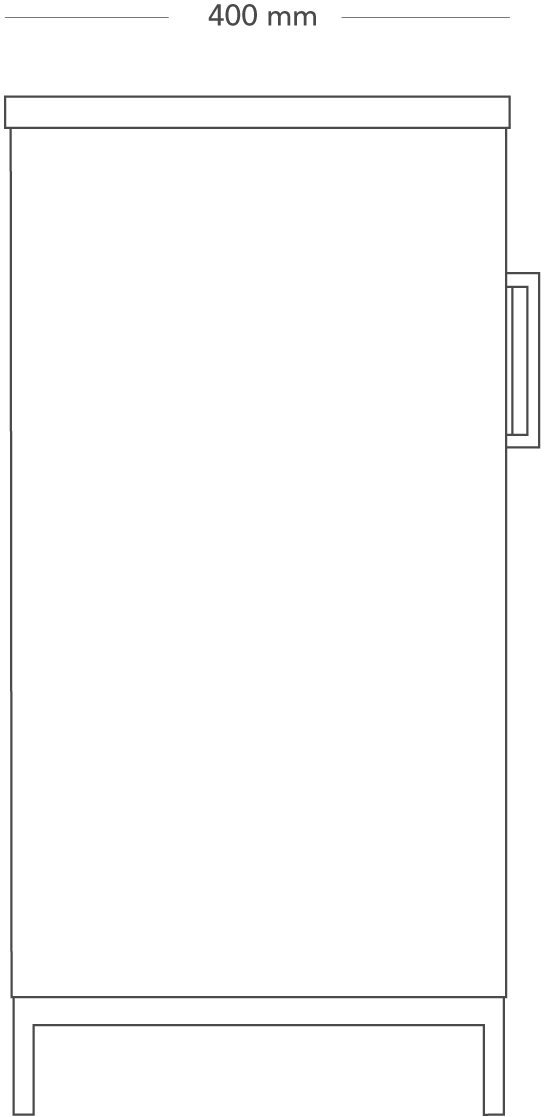

| Depth | 400 mm |
Storage
| Height | 981 - 1333 mm |
| Width | 800 - 1600 mm |
| Depth | 400 mm |
Storage
| Height | 840 - 1192 mm |
| Width | 800 - 1600 mm |
| Depth | 400 mm |
Variant
Leg frame
-
Low leg frame
Low leg frame, height 94 mm. -

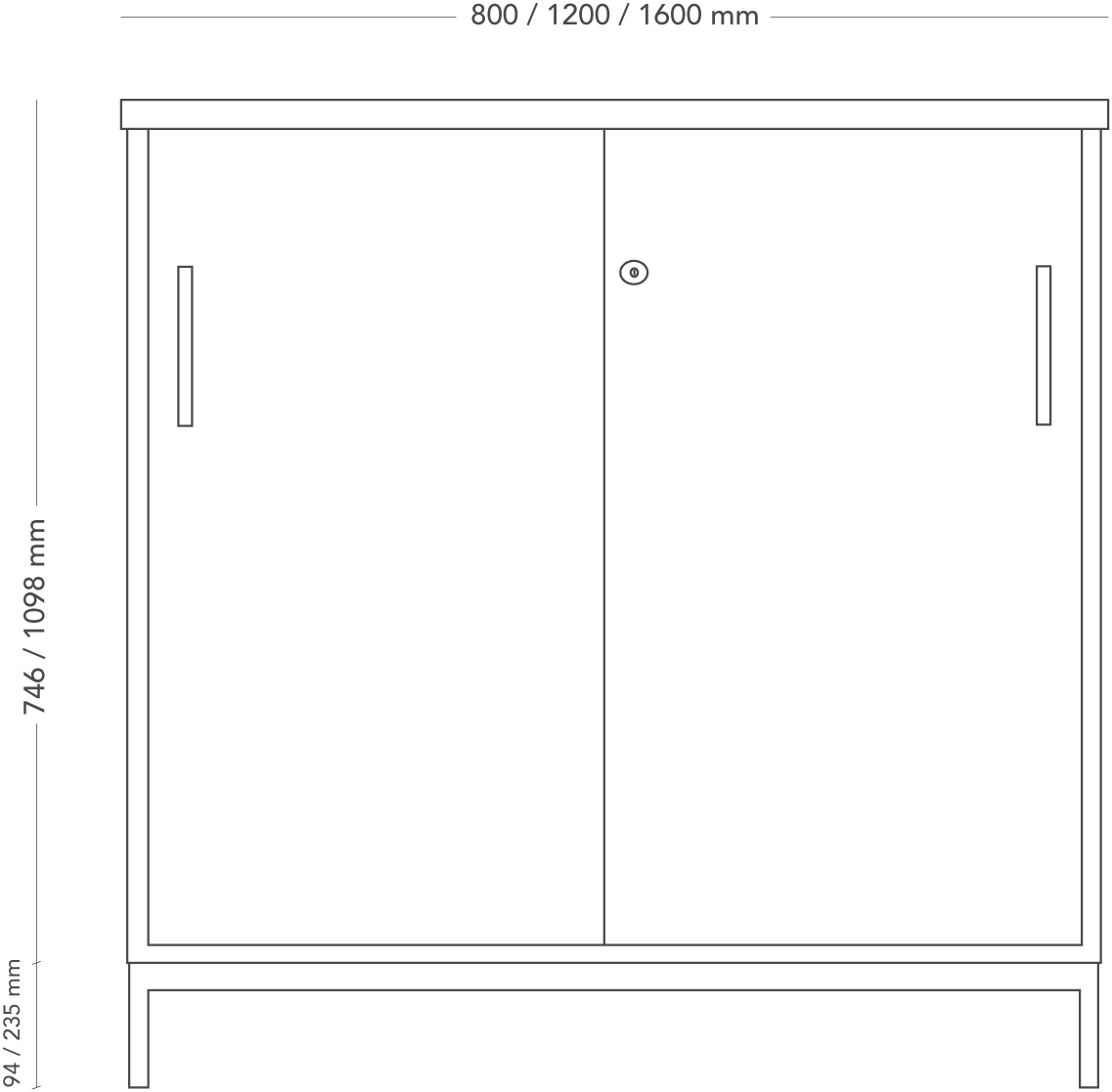

High leg frame
High legframe height 235 mm -

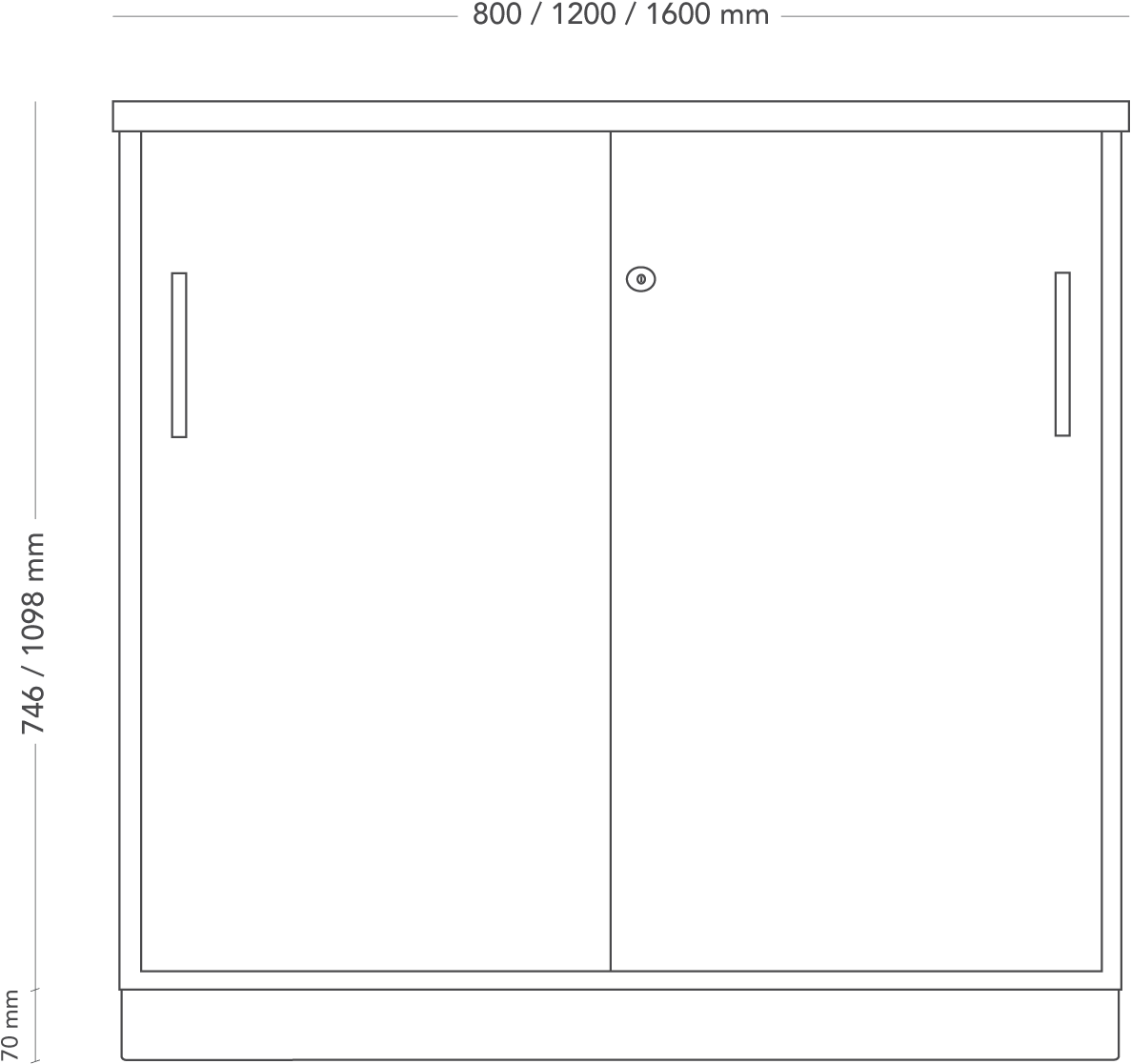

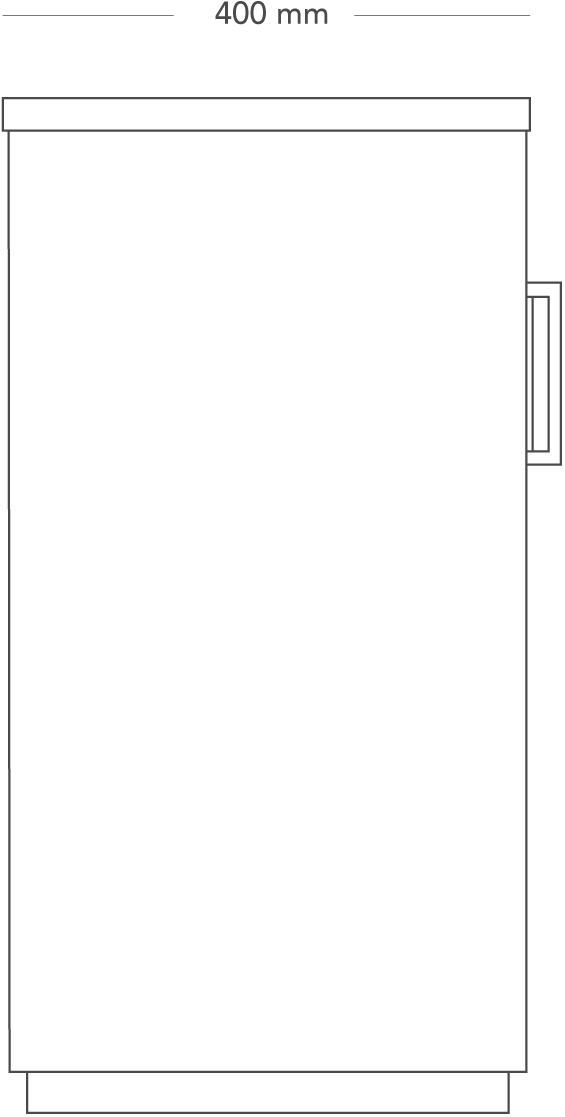

Plinth
Plinth height 70 mm -

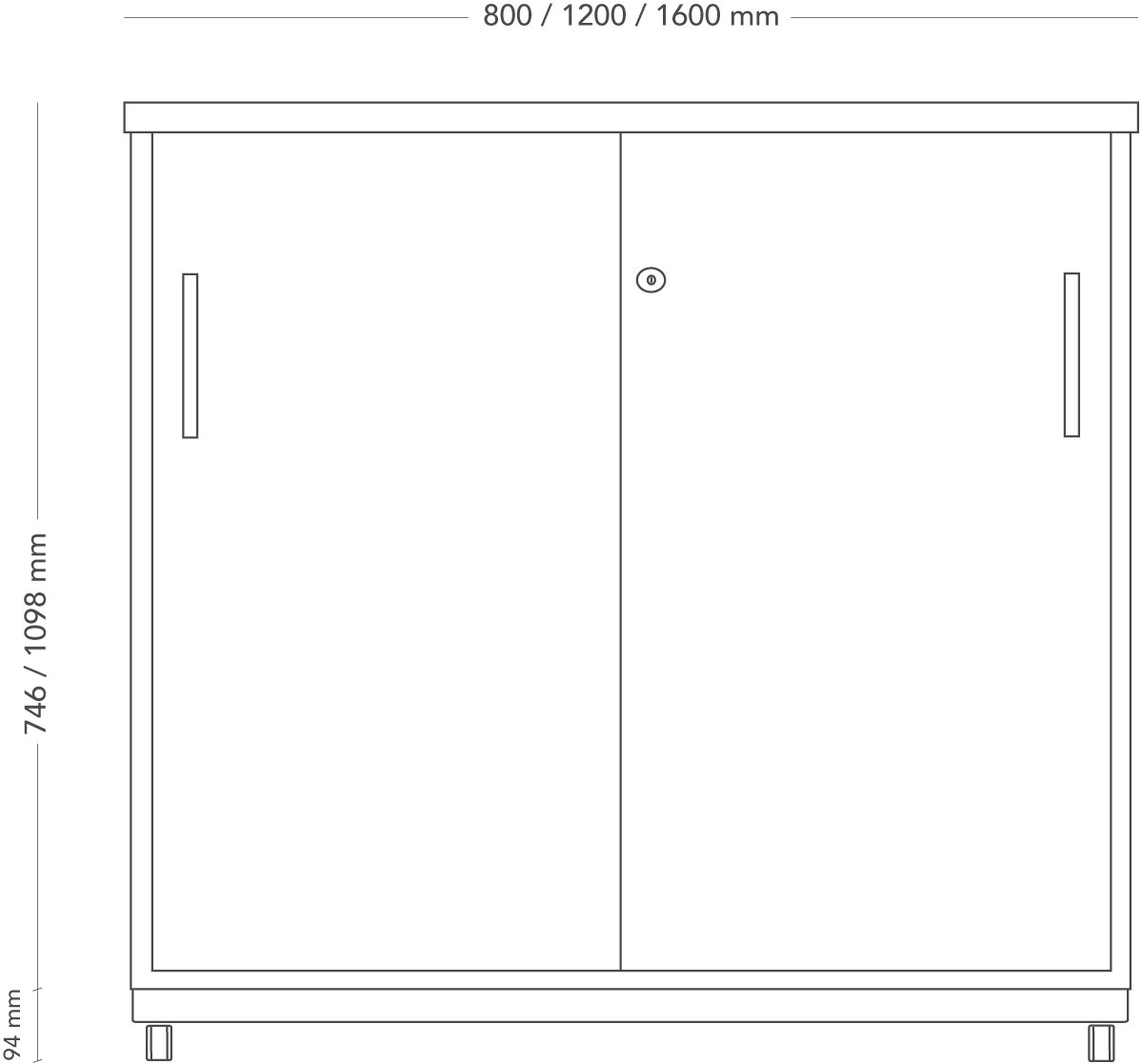

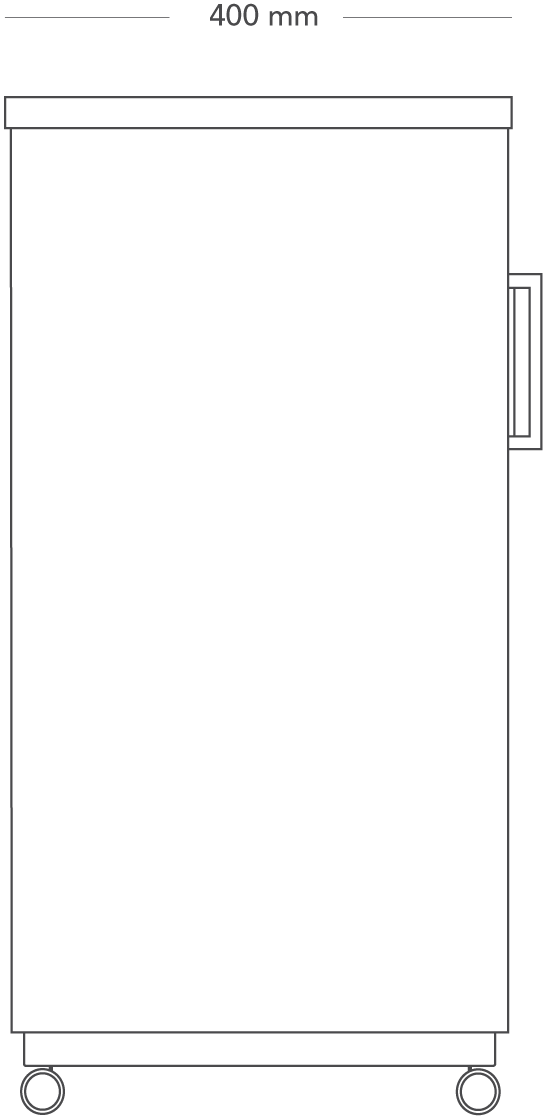

Castors
Castors, height 70 mm
Materials
Frame
-
Wood
-
-
MFC
-
Front
-
Wood
-
-
MFC
-
Leg frame
-
Metal
-
Handles and knobs
-
Metal
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Bracket handle
Bracket handle 150 mm. -
Key lock
Lock with key. -
Code lock
Lock with code. -
RFID-lock
Lock with RFID-function. -
Knob
Knob for drawer or door. -
Recessed handle
Round, recessed metal handle. -
Filing accessories
Filing, form holders etc. -
RAL Classic
194 solid colours from the RAL Classic K7 collection, at a fixed start-up cost.
